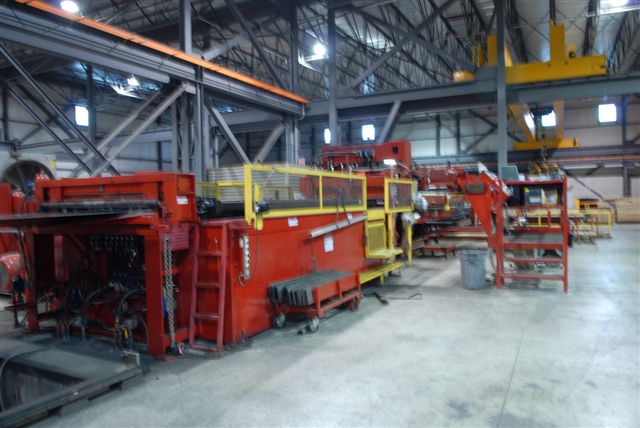

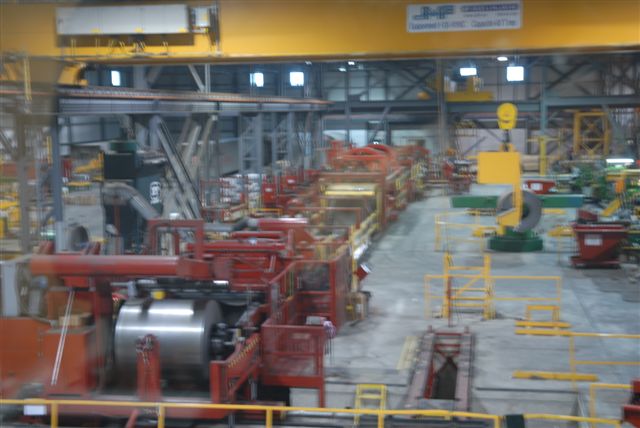

| 72" (1828.8 mm) x 0.312" (7.92 mm) Red Bud Stretcher
Leveller Line Rated for 100,000 psi yield at 0.250 (6.35 mm)
thickness. Line stop start design supports processing of 50,000 psi yield material at 0.375" (9.53 mm) up to 60" (1524 mm). Maximum straightener speed is 170 FPM. |
|

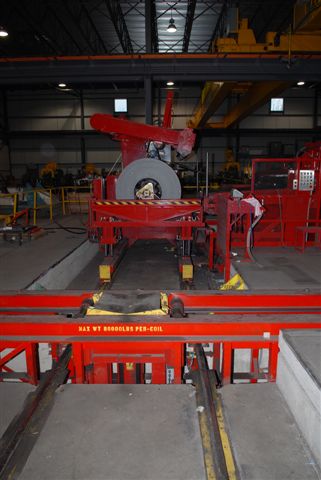

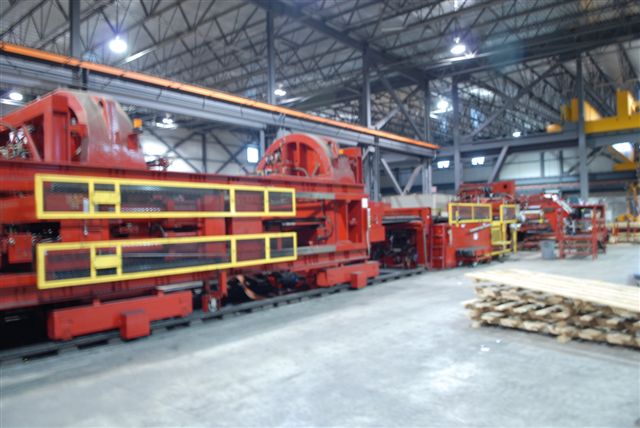

| model CLSL-80 JIT SPACE SAVER 84" (2133 mm) O.D. coil stage and load
system 40-ton coil entry capacity |
 |

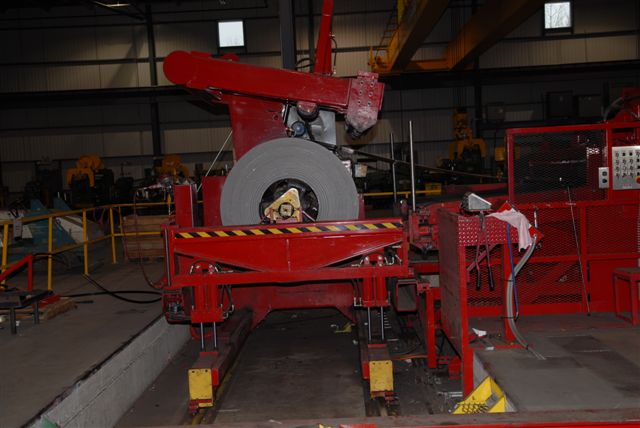

| model RM24-72-80 19-25 EXP X 84" O.D. REEL-SA uncoiler w/ outboard bearing support |
 |

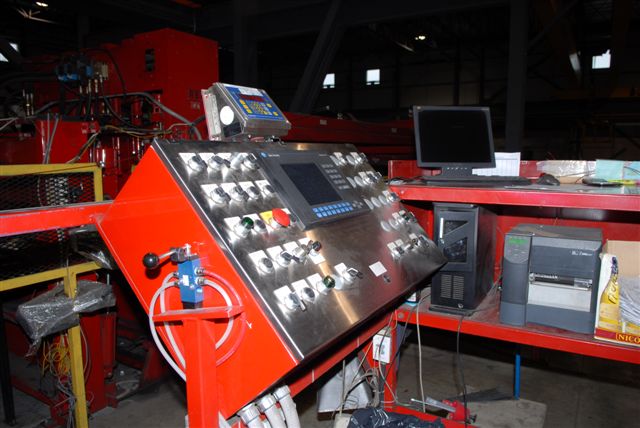

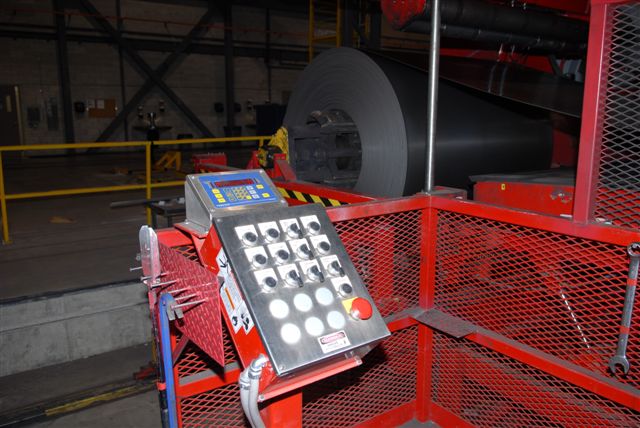

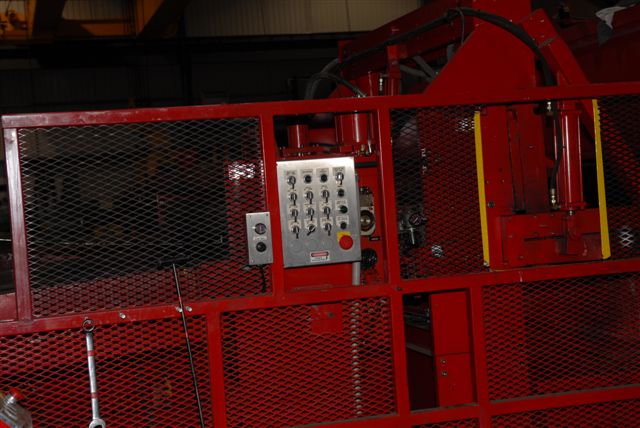

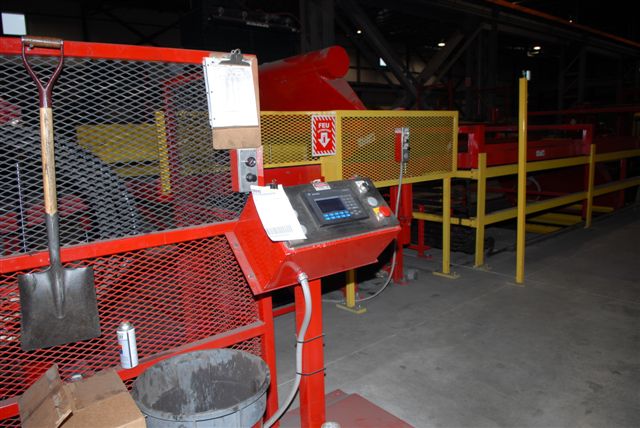

| Model PBTH-32-96-36 Heavy gauge peeler breaker (and main operator console) |
 |
| model SH18-250-72 entry crop shear |
 |

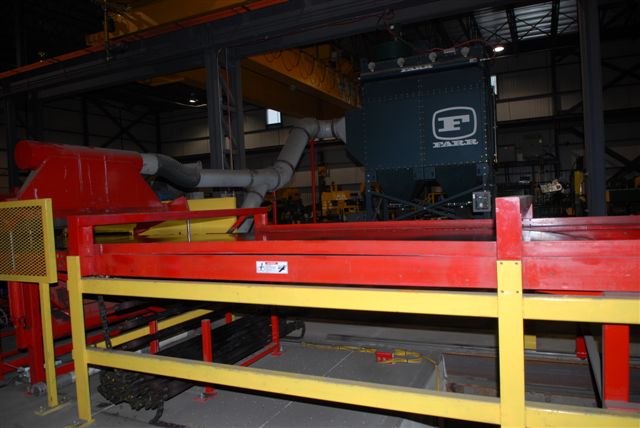

| model SM06-72 R60-65 6" (152mm) diameter x 11 roll precision straightener, with dust collector |
 |

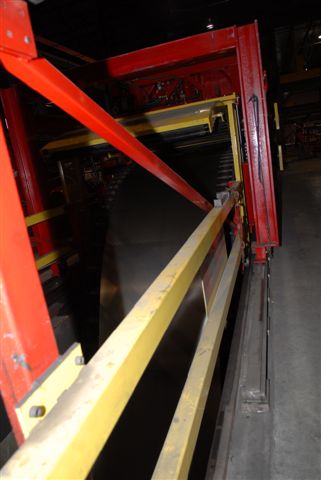

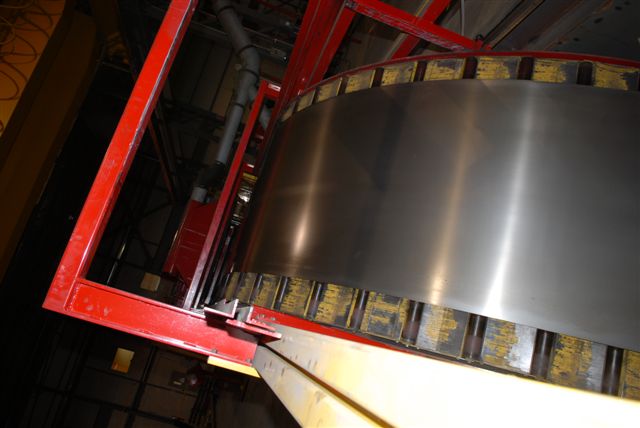

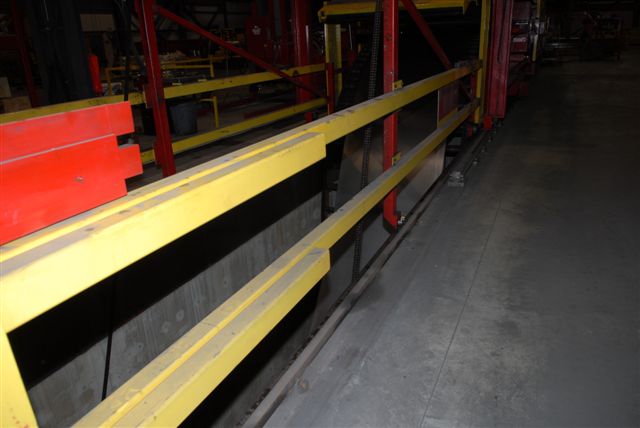

| looping pit |
 |

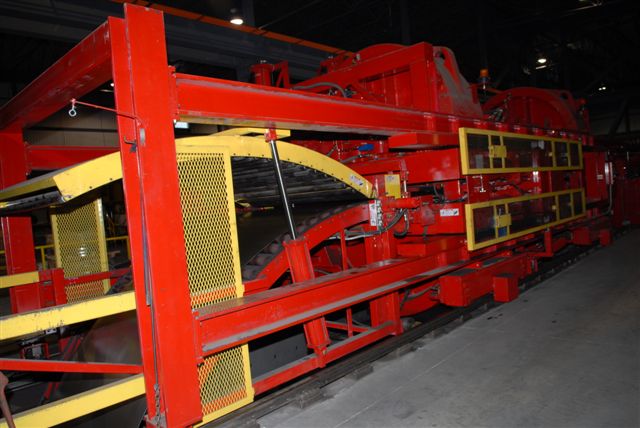

| model THSR-STRETCHER traversing ramps / thread system-120 | |

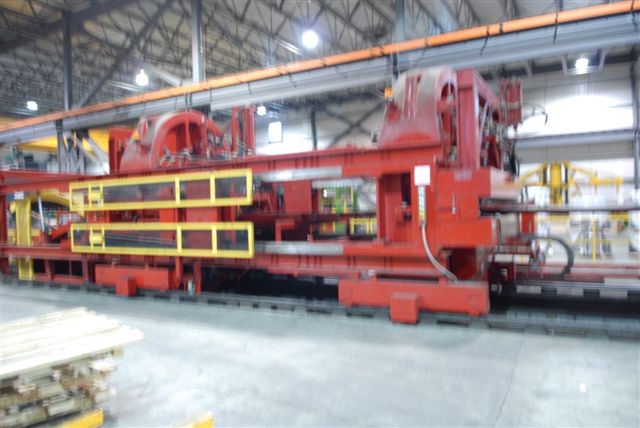

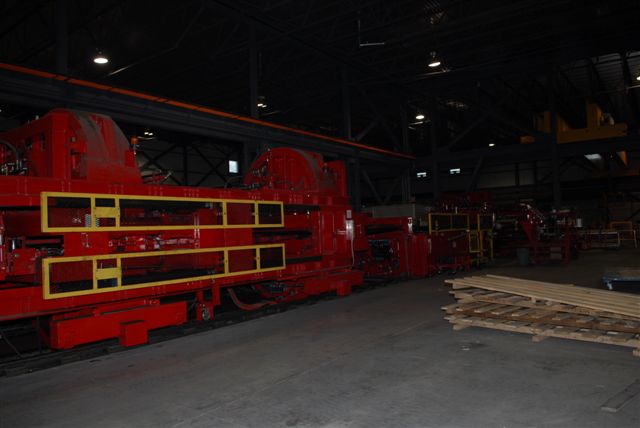

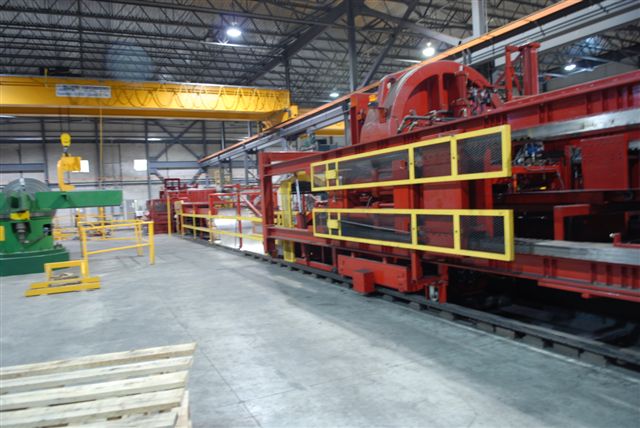

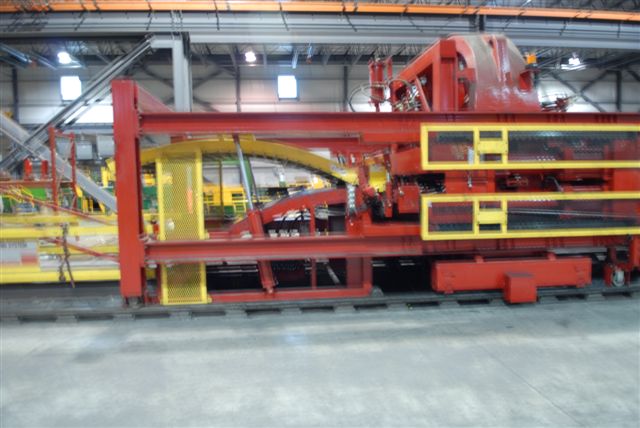

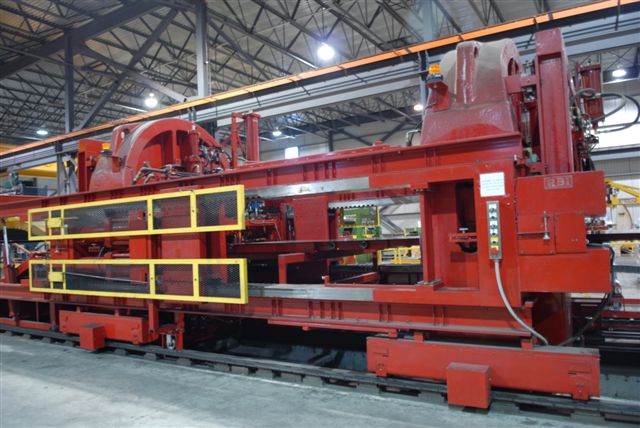

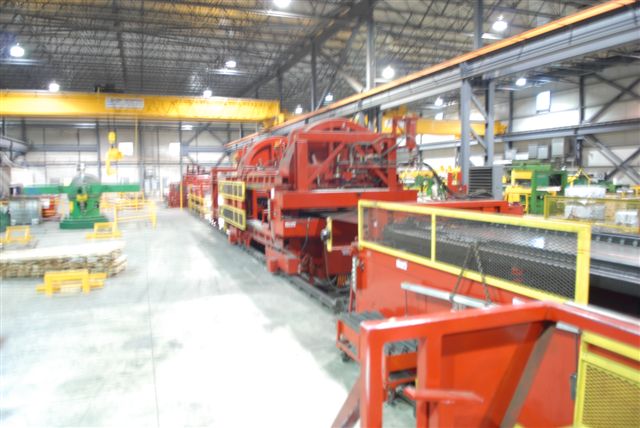

| model LSNM patented no mark clamping stretcher leveler-250 |
 |
| model PUVV-100H59 LV VARI-VOL 200 power unit | |
| model FMHG-3-72-120 precision length dual motor grip feed-HG-AL |
 |
| model SH24-250-72 main CTL shear |
 |

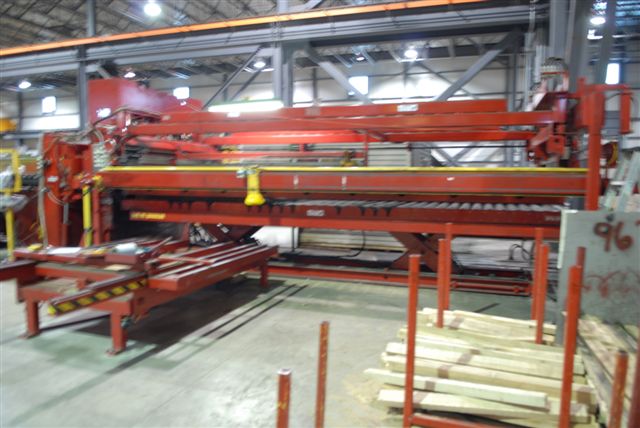

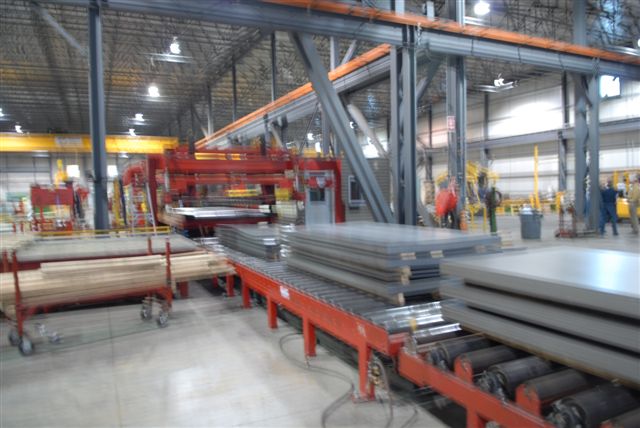

| model SSDS-144 d side blank support drop stacker/divert/ hg | |

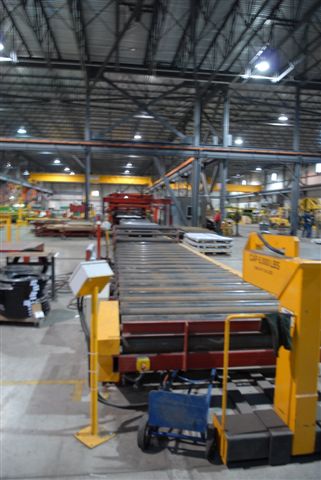

| model SSTS-288-20 automatic lowering stack table-rt |
 |

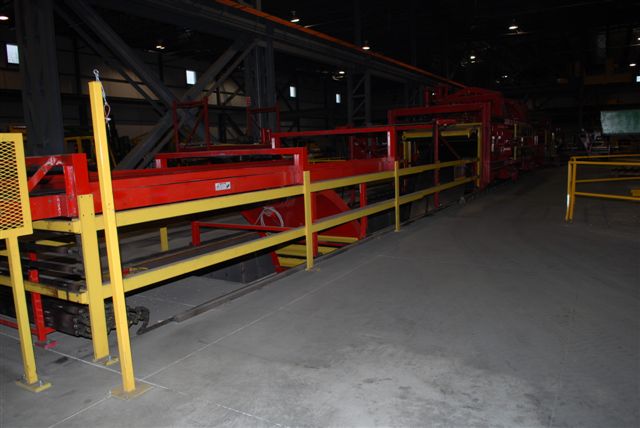

| exit conveyors |
 |
